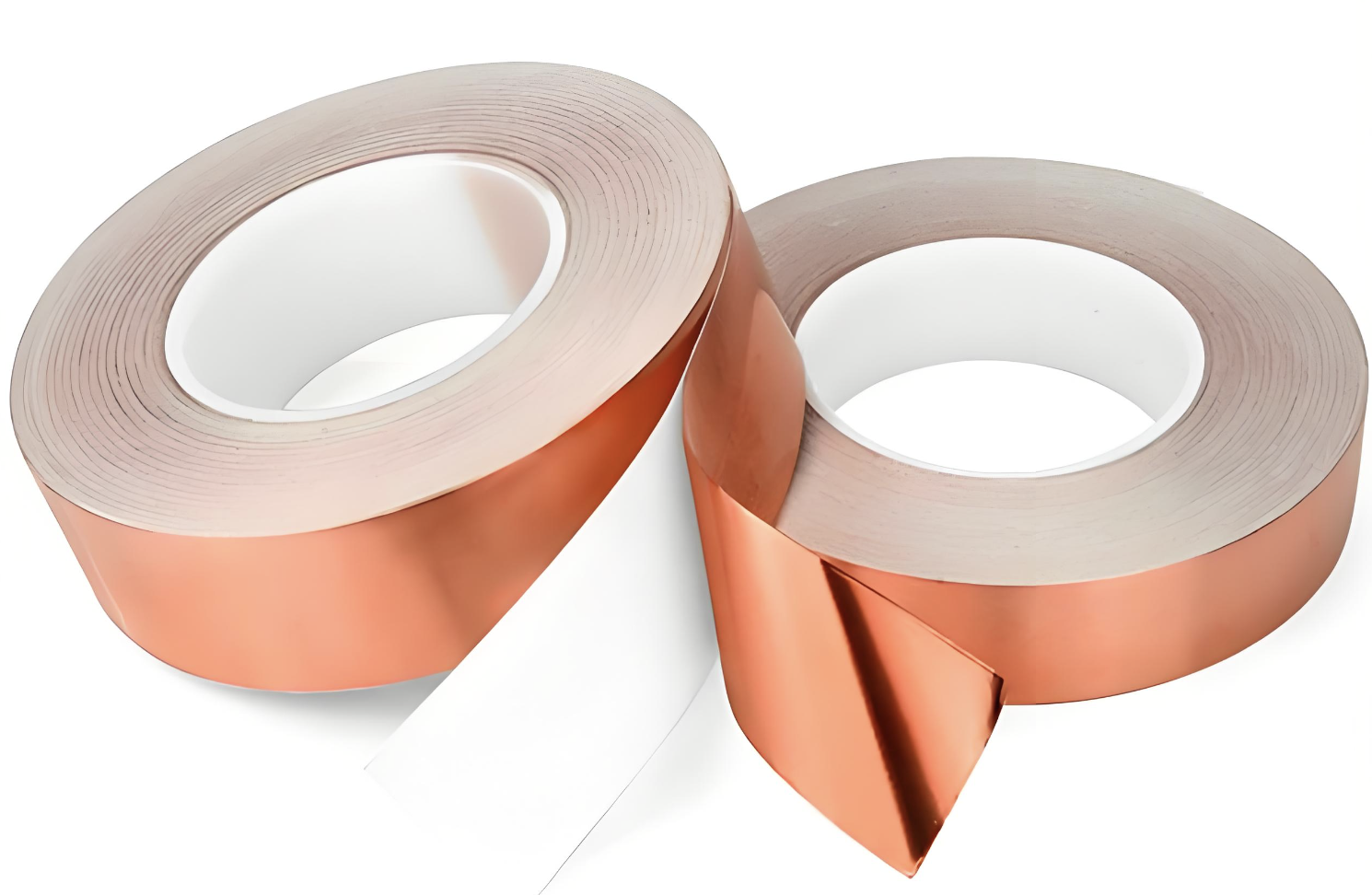

Conductive Copper Foil Tape is extensively utilized in various electronic devices, providing exceptional electrical conductivity and effective EMI shielding. CapRock offers a diverse selection of copper foil thicknesses ranging from 8μm to 80μm, featuring high-performance conductive adhesive coated on one or both sides, according to customer preferences. Additionally, an optional black coating is available for enhanced aesthetics and protection. CapRock’s conductive copper foil tape demonstrates high durability under high temperature and high humidity (HTHH) testing.
Product No | CAP068 | CAP177 | CAP225 | CAP365 | CAP372 |
---|---|---|---|---|---|
Backing Thickness (mm) | Copper foil (0.018) | Copper foil (0.035) | Copper foil (0.025) | Copper foil (0.035) | Copper foil (0.05) |
Adhesive Type | Conductive Acrylic | Conductive Acrylic | Conductive Acrylic | Conductive Acrylic | Conductive Acrylic |
Overall Thickness (mm) | 0.05 | 0.45 | 0.06 | 0.07 | 0.1 |
Length (m) | 50 | 50 | 50 | 50 | 50 |
Peel Adhesion (gf/in) | 1000 | 1000 | 1000 | 1000 | 1500 |
Heatresistence (℃) | 130 | 130 | 130 | 130 | 130 |
Conductivity | 0.5↓ | 0.5↓ | 0.5↓ | 0.5↓ | 0.5↓ |
